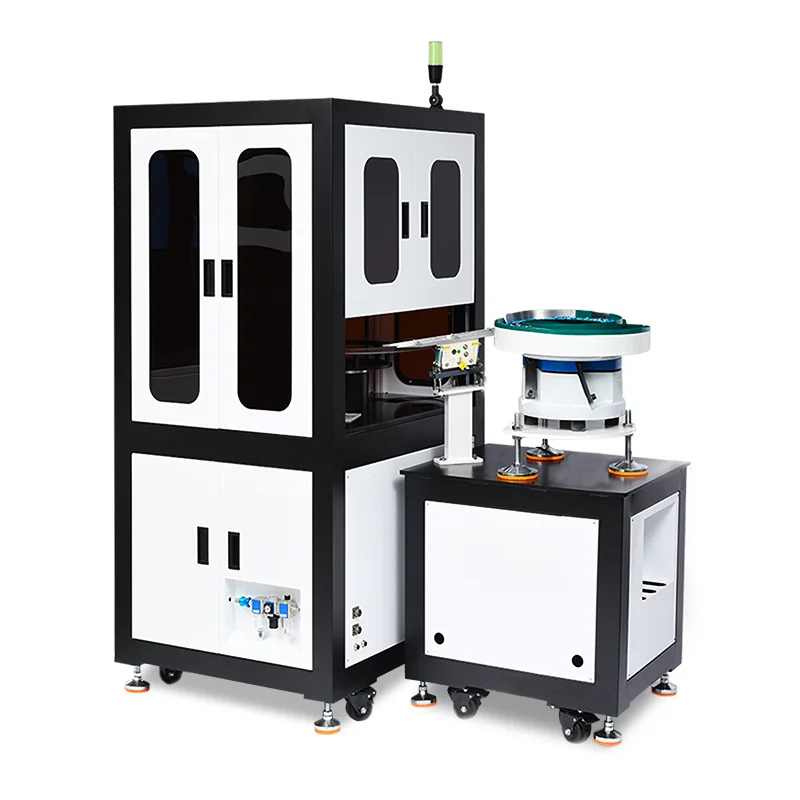

Connector Vision Inspection Machine

Optical sorting machine with 7 CCD cameras for the dimensional measurement and defect detection of connectors and pin headers

Connector Vision Inspection Machine
Connector Vision Inspection Machine

Connector Vision Inspection Machine

Optical sorting machine with 7 CCD cameras for the dimensional measurement and defect detection of connectors and pin headers

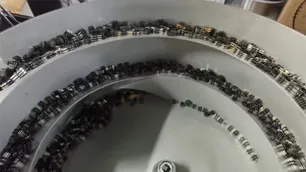

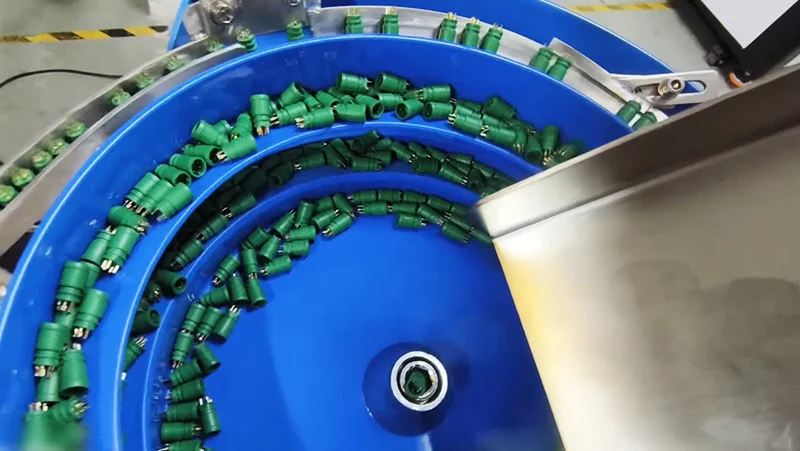

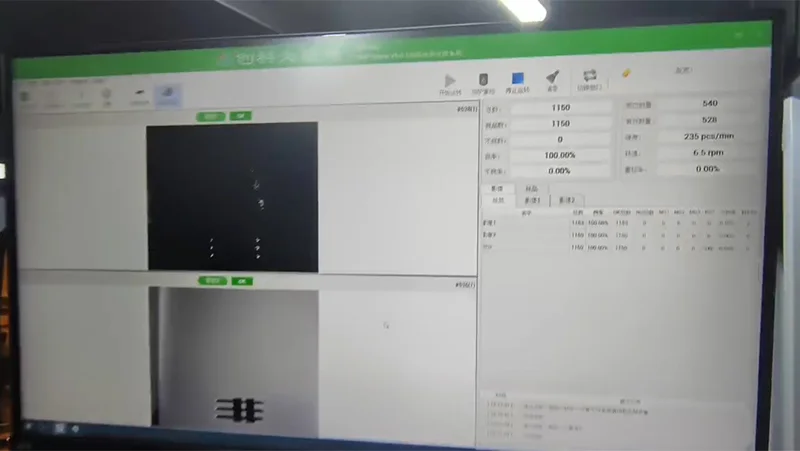

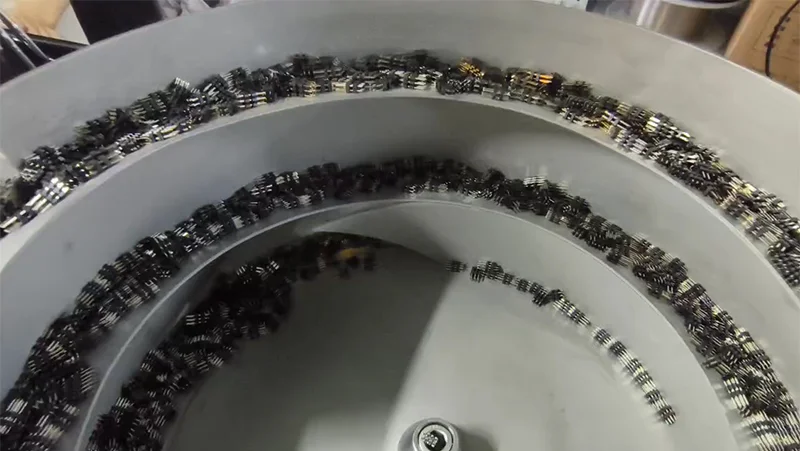

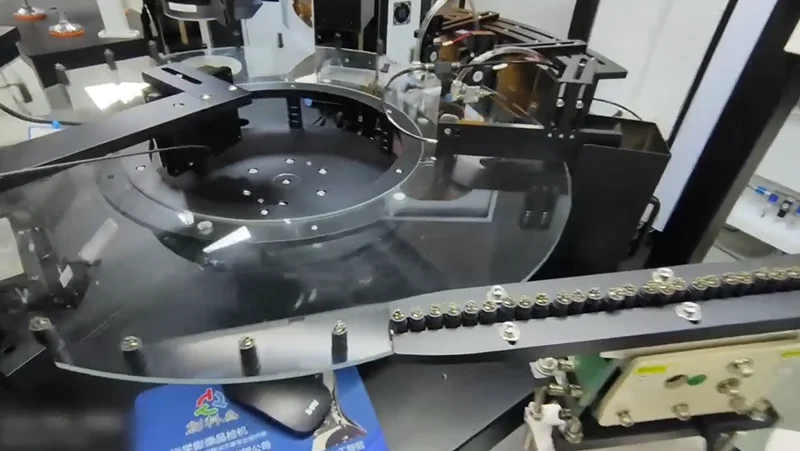

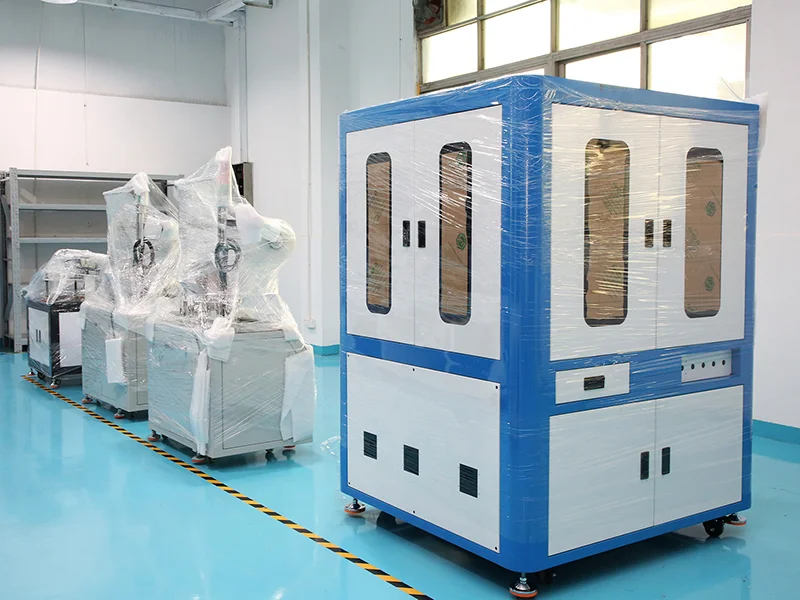

The connector vision inspection machine combines an automatic elevator feeder with vibration bowl feeding to ensure efficient and consistent part handling. It is equipped with AI-powered visual inspection software and 7 high-resolution CCD industrial cameras for precise and comprehensive defect detection.

This system identifies surface issues such as missing pins, pin misalignment, burrs, breakage, poor molding, and chipped corners. It achieves a detection speed of 150 pcs/min with ±0.01 mm measurement precision. Upon request, the machine can also integrate with an automatic packaging unit for counting, labeling, and packaging, streamlining your inspection and post-processing workflow.

Get in touch to see how this solution can bring speed and precision to your connector inspection operations.

Request a Quote
Inspection Cases
  • Connector Vision Inspection Machine
  • Connector Vision Inspection Machine
  • Connector Vision Inspection Machine
  • Connector Vision Inspection Machine
Specifications
Connector Vision Inspection Machine
Connector Vision Inspection Machine
General Power 1.8 kW
Air pressure 0.4-0.6Mpa,air inlet pipe Ø16mm
Machine dimensions 1100(L)×1700(W)×1800(H)mm
Machine weight 350kg
Working conditions Less than 90% RH
Visual inspection Inspection speed Design speed: 80-3000 pcs/min

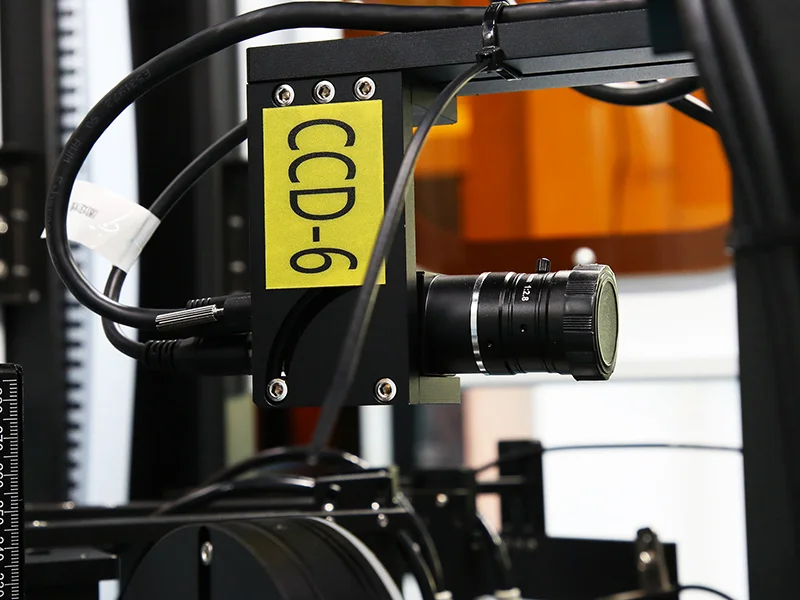

CDD Camera Image sensor Basler (German)
Resolution 2560×1920,1280×1024
Inspection accuracy ±0.01mm
Lens Optical lens Custom lens
Depth of field (DoF) 0.2-3mm
Light source AOI light source
Feeding Precision belt feed system Precision belt is made from special conductive material through integrated forming process,ensuring high accuracy (customized)
  • Connector Vision Inspection Machine
  • Connector Vision Inspection Machine
  • Connector Vision Inspection Machine
